Drawing the future with one-of-a-kind X-ray technology

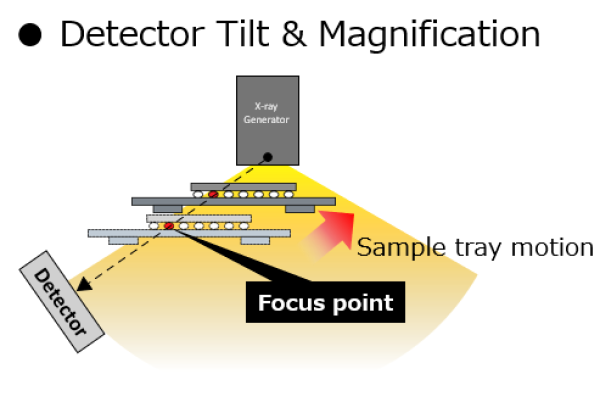

Eucentric function

(Patent No.3657768)

With a manipulation function that never misses the targeted observation points, X-ray inspection or analysis becomes extremely easy and efficient.


Case example of the eucentric function

A double-sided mounting substrate for memory.
The solder ball at the center always remains at the center of the screen, even when the observation angle is changed.

80x geometric magnification

Even if the sample tray rotates while the detector is tilted in the 250X high magnification, the position of the VIA in the center of the screen does not change, so the observation point is never missed.

250x geometric magnification
